Wartburg 353 and Barkas electronic ignition 12V with Hall signal
If you are interested in this product in larger quantities as a dealer, mechanic or club leader, please register on our website for discounts or write to our email address info@rectifier.eu
IMPORTANT!
The ignition base plate is not suitable as a transmitter unit for the original EBZA!
It can only be used with a spark plug connector with interference-suppressed. (R = 5-10 kΩ)
The electric ignition is compatible with Wartburg 353 and Barkas.
It includes the power output stage, so there is no need for a separate "black box".

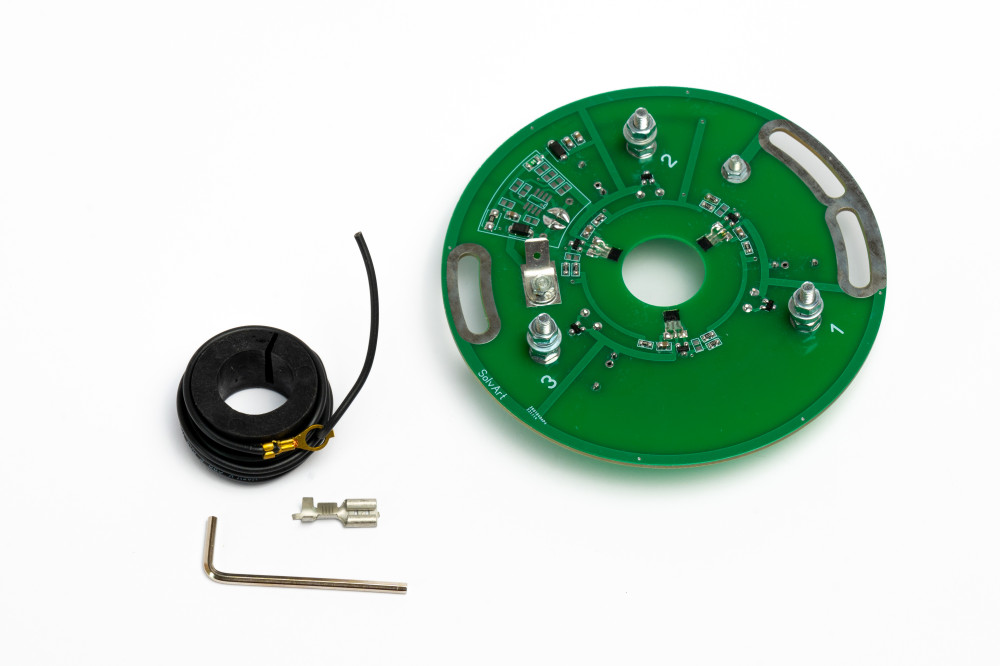

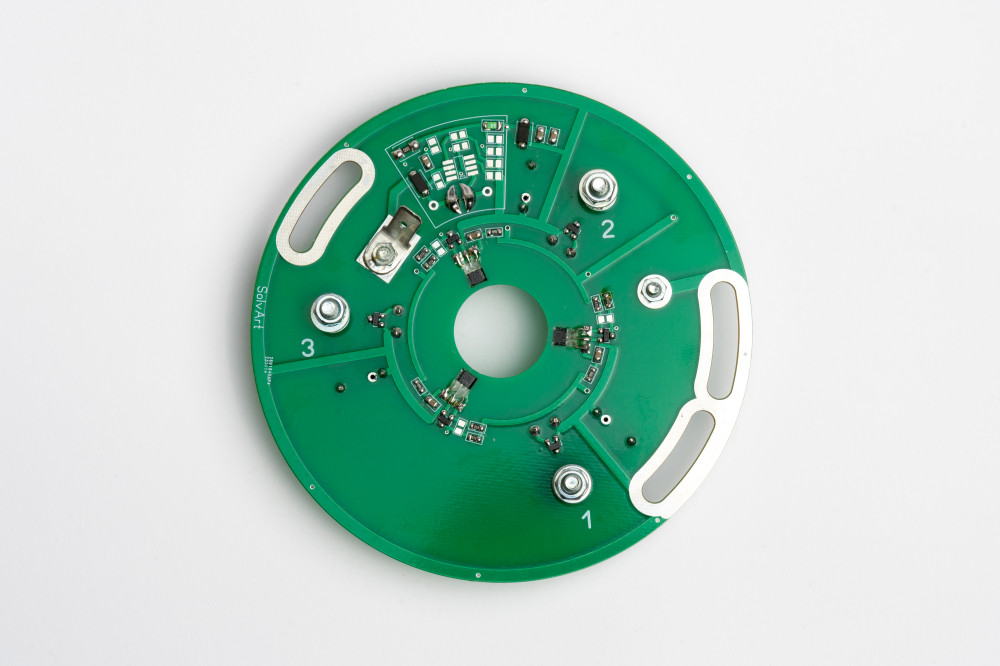

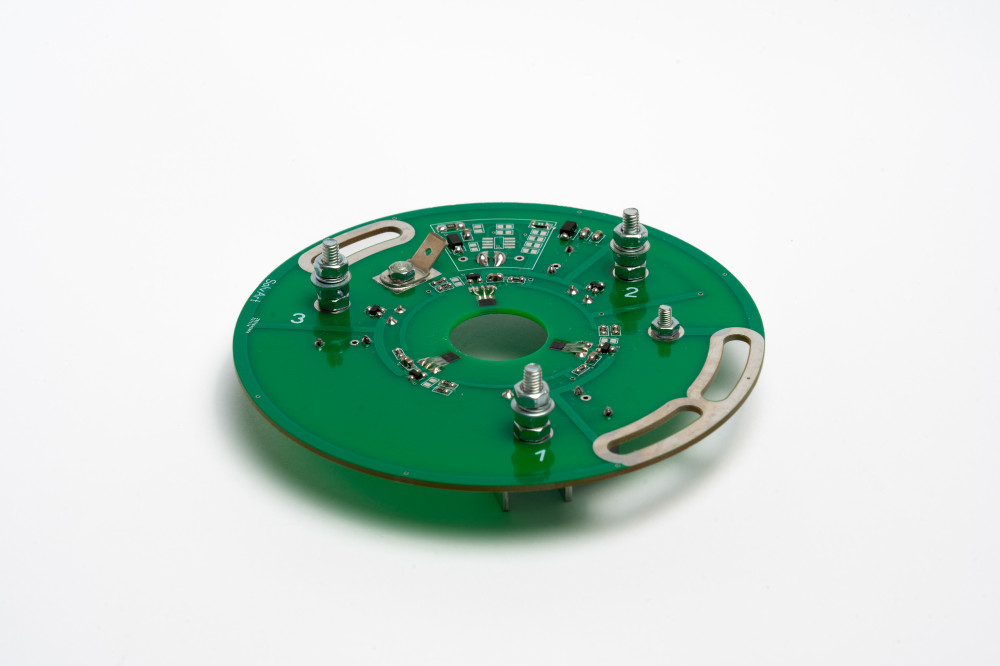

The ignition system is designed to convert from the previous contact breaker to contactless ignition in case of Wartburg 353 and Barkas B1000 models. The ignition base plate is connected directly to the ignition coils. To install, simply replace the contact breaker with the new ignition base plate and connect the transmitter.
Ignition timing only needs to be adjusted on one cylinder, as all sensors are fixed at exactly 120 degrees.
The power supply and encoder are combined on one circuit board, so there is no additional external housing as with the original Stahnsdorf EBZA. To use contactless ignition, the contact breaker ignition base plate must be removed beforehand.
