Universal voltage regulator 12V is also compatible with vehicles that have a regulator installed outside of the generator and have an excited rotor (ex-socialist cars, e.g.: Lada 1200, Skoda 105, Skoda 120, Dacia).
The voltage regulator works on a 12 volt (12V) system. The set (regulated) charging voltage is around 14.4V.
The regulator is designed for a negative regulation system. This regulator is rarely in need!

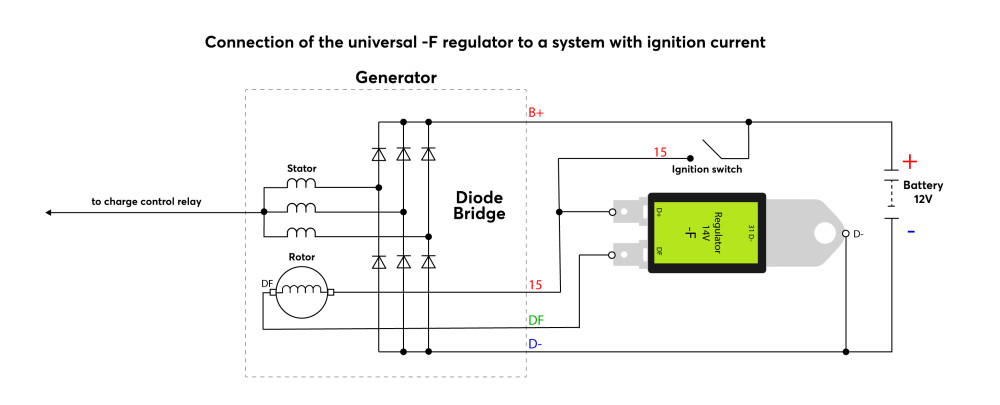

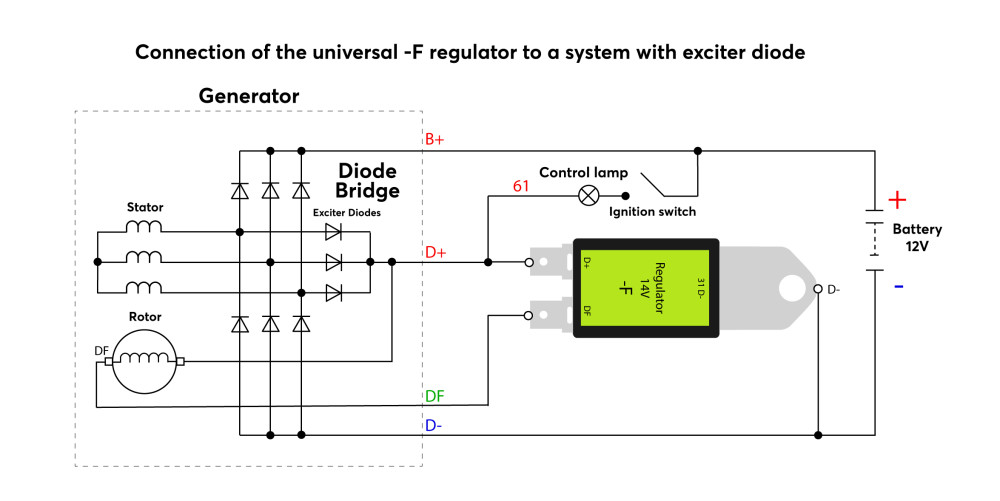

Regulator outputs:
| tab/flag |
negative |
| D+ / 61 / 15 |
excitation diode / control light (61) / ignition switch |
| F / 67 / DF |
excitation coil |
